TORX TOOLS

NUMBER EH2429L

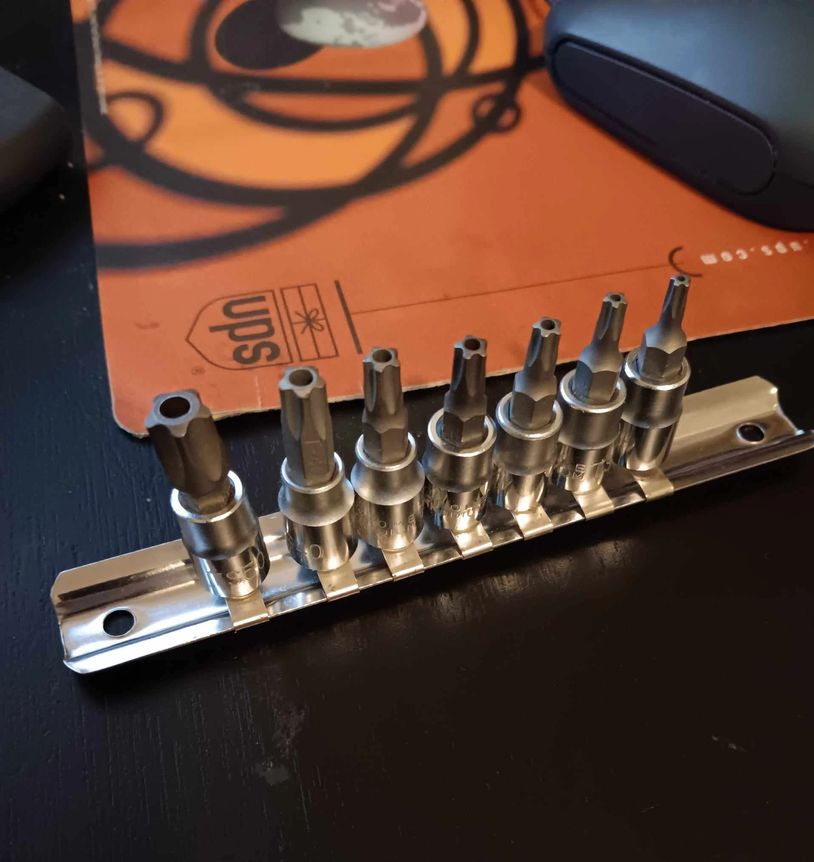

7 Piece Security 5 Point Star (Torx) Sockets

Set includes:

TS15, TS20, TS25, TS27, TS30, TS40 and TS50

Torx 5 Point Security (with hole in the tip) Comes on a rail.

Note: These tools Do NOT work in a standard torx fasteners.

These are 5 Point Star. Some German tool books call this style IPR or Penta.

Automotive: Body trim, interiors, dashboards on Mercedes-Benz, Audi, BMW, Porsche, and some Chrysler vehicles.

Special 5-Point Tamper-Proof Torx, or Torx Plus IPR Tamper-Resistant Bits).

These are specialized screwdriver/drill bit for tamper-proof 5-lobed (pentalobe/star) fasteners with a center pin (tamper-resistant design).

These bits drive or remove 5-point security screws.

The center hole in each bit fits over the pin in the screw head.

These are essential for repairs on electronics, automotive trim, and protected components where manufacturers use these for anti-tampering.

NUMBER MK-114180

Long "Turned-Down" Socket with Torx End

Features Machined Shaft to Allow Proper Clearance to Service Dual Mass Flywheel Mount Bolts, as They are Off-Center to the Access Point, Especially from Wear

Why it's needed?

The flywheel bolts on many BMW engines (especially older V8 models like M60, M62, S62, and some others) are positioned in tight/recessed spots behind the engine/transmission bell-housing.

A standard/short Torx bit or socket won't reach them properly without risking damage to the tool, bolt, or surrounding components (or it simply can't fit due to the depth and angle). This extended socket provides the necessary reach and strength to torque those bolts correctly during jobs such as:

Clutch replacement (manual transmission vehicles)

Dual-mass flywheel (DMF/ZMS) replacement

Transmission removal/installation

Crankshaft-related work where the flywheel needs to be removed or held,

It's particularly common on 1990s–early 2000s BMW models like the E34/E39 540i, E38 740i, E39 M5, E46 M3 (in some cases), and other V8-powered cars with manual gearboxes.

Services E34 and E39 with the 4, 4.4 and 5 Liter with Standard Transmission and Manual Transmission, Including 530I with Dual Mass Flywheel (1993-1995), 540I with Dual Mass Flywheel (1993-2003)

Also Services Ford 3.5 Liter V6 Found in the Edge

Also Can be Used on Ford Edge, Lincoln Mkx and Mazda Cx-9 Rear Bearing Assembly Mounting Bolts, as Shaved-Down Design Allows Clearance of the ABS Tone Ring

This tool is Made in USA"

NUMBER TD30XL

16 Inch Extra Long Torx Screwdriver size T30

Security Torx driver with 12" Long Shaft

and black tamper-proof (hole in the tip) blade.

Blade is 12 inch Long and the overall length of this tool is 16 inches.

For the professional or backyard technician, the long shaft is great for working in confined areas. Torx heads are designed to prevent cam-out
and allow higher torque transmission so screws and bolts can be tightened more securely.

This torx driver is made of chrome vanadium steel heat treated with magnetic tip that will come in very handy.

Non slip cushion grip handle

Note: Pictures are for reference only.

This sale is for one tool size T30 only.

NUMBER 11323-00

MICRO BIT DRIVER
This is a 1/4-inch drive swivel head micro bit driver (also called a micro ratcheting bit driver or mini ratchet screwdriver) manufactured by Titan Tools.

A compact, precision hand tool designed for working in tight or confined spaces, ideal for detailed assembly, electronics, automotive work, or general EDC (everyday carry) use where a full-size ratchet or driver won't fit.

Drive size: 1/4 inch Overall length: 4 inches (compact size)

Head type: Swivel (90-degree angle adjustable/reversible for better access in awkward spots) Ratcheting mechanism: 90-tooth (fine ratchet with minimal swing arc, reversible direction)

Handle material: Anodized aluminum (orange color in most versions)

Head material: Chrome vanadium alloy (durable and strong)

Bit retention: Magnetic (holds bits securely)

Includes 1 PH-2 Phillips bit

Color: bright orange for visibility.

This tool is popular among mechanics, technicians, and hobbyists for its versatility in tight areas, like engine bays, electronics, or furniture assembly.

NUMBER MK5606C

Pivoting Head Torx wrench set

Features a unique pivotal joint to easily secure and remove screws in confined areas.

Without removing the key, you simply line up the key like a screwdriver, turn it to a snug position, and then rotate the handle in one simple movement around any obstacle.

Constructed of high quality industrial steel.

Chromium finish to resist corrosion.

Long handles to provide more leverage

Torx (star) on both ends for versatility

Fitted canvas pouch included

Sizes: T25, T27, T30, T40, T45, T50

NUMBER M9148-00

Precision Driver Set Torx Tools

9-piece precision screwdriver set with Torx (star) bits (T3-T10),

ideal for electronics and mobile phone repair, featuring a handy

storage case built into the handle, a magnetic tip, and a pocket clip

for convenience, all with durable construction and a distinct green color

Includes T3, T4, T5, T6, T7, T8, T9, T10 Torx (star) bits.

Applications: Designed for mobile phones, small appliances, and other electronics.

with integrated bit storage, magnetic tip, and pocket clip.

3400XT50

3400XT50 Socket Set 2 Tools

Set consisting of a 19mm Multi-spline short socket and a long Torx T50 Torx tool

Some manuals describe this procedure as "mounting and dismounting" the alternator pulley or V-belt at the alternator/for Mercedes for removal and replacement of free-wheel drive pulleys on 1998 & up Benz, including 606 (210), 648 (211, 164), 642 (211, 164) Mercedes E300 1996 -1999. The long tool is a Torx T50 and and is 3/8 drive and 4 inch overall length used to hold the alternator shaft when replacing the belts the area between the alternator and car body is very limited. You will get both tools with this purchase.

NUMBER W82011

Torx / Star Bit Identifier

Slide the Torx screw head into the slotted openings on each "finger" of the tool until it fits perfectly without play—this tells you the exact size (e.g., T-10, T-20, etc.).

Especially useful for internal Torx (star-shaped recess in the screw head) and sometimes external Torx (E-series). This avoids trial-and-error with bits, preventing stripping or damage to fasteners.

Design: Made of durable, impact-resistant red plastic with multiple tapered slots on a key ring-style holder for portability. It includes a reference card/tag with a torque spec chart and common Torx sizes for quick lookup.

Sizes Covered (based on common sizes):Internal Torx: T-10, T-15, T-20, T-25, T-27, T-30, T-40, T-45, T-50, T-60

External Torx (E-series): Often E6 to E16 or similar (varies slightly by model)

NUMBER NUMBER 3400XT50

Set with T50 Torx and Multi-Spline Socket

Set consisting of a long Torx T50 Torx tool and a 19mm Multi-spline short socket and

The long tool is a Torx T50 and and is 3/8 drive and 4 inch overall length used to hold the alternator shaft when replacing the belts the area between the alternator and car body is very limited.

To use, simply place the Torx bit in the center hole of the Socket and then position both in the center of the alternator clutch.

fix the drill bit in place and rotate the spline nut to lock or unlock. This efficient operation ensures a secure and stable fit, making the tool highly effective for alternator maintenance. You will get both tools with this purchase.

NUMBER EP-12FELO

12 Piece Felo Torx Bit Set

MADE IN GERMANY

Felo Impact Torx insert bits (individual 2-packs on cards), all in the Impact series with C 6.3 shank (standard 1/4" hex drive) and 25mm length (which is exactly 1 inch, since 25.4mm = 1", and these are commonly labeled/marketed as 1" bits in imperial contexts).These are impact-rated bits designed for high-torque use in impact drivers, with a torsion zone that absorbs shock peaks to prevent premature failure, precision-machined Torx tips for excellent fit and reduced cam-out, and they're engineered to exceed ISO standards for durability. Felo's Impact line is known for superior longevity compared to many competitors (users often report they outlast brands like DeWalt or Milwaukee in heavy use).

Sizes (from left to right):

Torx 10 (T10 x 25mm, C 6.3)

Torx 15 (T15 x 25mm, C 6.3)

Torx 20 (T20 x 25mm, C 6.3)

Torx 25 (T25 x 25mm, C 6.3)

Torx 30 (T30 x 25mm, C 6.3)

Torx 40 (T40 x 25mm, C 6.3)

NUMBER BMW112250

Special Socket for BMW Head Bolts

This is a number E12 Torx BMW Head Bolt Wrench/Socket.

Key Details: Type: E12 external Torx socket(designed for external Torx-style fasteners, sometimes called "female Torx" or "E-Torx").

Drive size: 1/2-inch square drive

Length: Extended shaft, typically 6 inches (15 cm) long — some listings note around 7-3/4 inches overall for better reach and torque handling.

Primary use: Specifically fits and removes cylinder head bolts on certain BMW engines, including:M42 (1.8L)

M50 (2.5L)

Additional compatibility: Often works on a broader range of BMW engines with similar E12 head bolts (e.g., M10, M20, M30, M44, M52, M54, M60, M62, and others in various 3 Series, 5 Series, etc. models — check exact engine fitment for your vehicle).

Features: Thin-wall design for access in tight spaces, sometimes described with a special lock ball for secure fit on the bolt.
