Mercedes

NUMBER MB2RAD

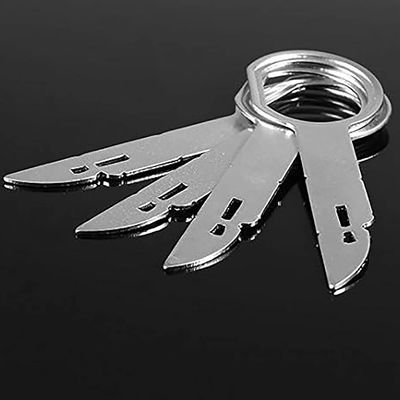

Classic radio removal keys (also called release tools or extraction keys).

Designed specifically for removing factory/OEM head units (radios) from the dashboard in many Mercedes models, as well as compatible systems in same Audi, VW, Porsche, and some Becker-equipped vehicles. These keys are also for models like the Porsche 911 (993 and 996 generations), Boxster (986), and early Cayennes with the CDR-22, CDR-220, or PCM1/PCM2 systems. Widely used on Mercedes-Benz vehicles from the 1990s to mid-2010s, including:C-Class (W202, W203, etc..)

E-Class (W124, W210, W211)

S-Class (W140, W220)

CLK (W208, W209)

SLK (R170)

ML-Class (W163)

Vito/Viano

And many others with Becker, Alpine, or factory Mercedes audio systems.

(Newer models with COMAND NTG systems may use different or no tools, as radios are often integrated differently.

OEM Mercedes part numbers include things like 0005898863 or 963-589-0105-00 (963-0105). Note: Picture shows 4 keys but Mercedes and Porsche sometimes only need two keys.

NUMBER M0109

33pt Injector Pump Socket

33pt Injector Pump Socket (also called a 33-point serrated socket, 33-spline socket, or multi-spline delivery valve holder socket) is a special tool designed specifically for Mercedes-Benz diesel engines.

This socket removes and installs the pressure valve holder (also known as the delivery valve holder) on Bosch-type inline fuel injection pumps. These holders are the large nuts or fittings on top of the injection pump that secure the delivery valves and related components. A regular socket won't fit because the holder has a unique 33-tooth serrated (splined) profile instead of standard hex or double-hex flats. Without this tool, you risk rounding off or damaging the valve holder during service, which can lead to fuel leaks, poor sealing, or costly pump repairs.

Key Specifications

Drive size: 1/2" square drive (standard for most impact or breaker bar use)

Length: 56 mm (about 2.2 inches) long

Spline count: 33 points (serrated internal teeth)

Diameter: Internal ~18 mm point-to-point; outer ~19.3 mm point-to-point

Material: chrome vanadium steel (Cr-V) for strength

Compatible Mercedes-Benz Engines

Fits a wide range of older Mercedes diesel models with inline injection pumps, including:OM601, OM602, OM603

OM605, OM606

OM615, OM616, OM617

Many early 250D, 300D, and similar models with fuel injection pumps

It is commonly used on pumps designated as MRSF-ERE (a Bosch pump variant).Note: Some discussions mention confusion with 32-spline tools (often for genuine Bosch pumps or slightly different applications). The 33pt version is the correct socket for the Mercedes pressure valve holders on these engines.

Common Uses

Replacing leaking delivery valve seals/O-rings on the injection pump

Overhauling or servicing the fuel injection pump

General diesel pump maintenance on classic Mercedes diesels (e.g., W124, W126, W201, G-Class, etc.)

Equivalent to Mercedes factory tool #617-589-0109-00 or similar).

M1313

MK1313

Mercedes-Benz and BMW Fan Clutch Service Kit

Mercedes-Benz fan clutch holding wrench holds the water pump pulley to allow release of the fan
BMW Fan clutch holding wrench holds the water pump pulley in place while loosening the radiator fan. Works on BMW M10, M20, M30, & other late model vehicles. (holes at 38 mm & 44.5 mm)
Mercedes-Benz fan clutch wrench removes the thermal-viscous radiator fans found on Mercedes-Benz and Ford vehicles. Works on M-B engines: M111, OM604, OM605, and OM606 (C & E Class; 36 mm opening).
Mercedes-Benz fan clutch wrench is used to remove or install the fan clutch assembly. Slim shaft handle lets you easily work in tight spaces. Works on M-B engines: M103, M104, M119, and M120 (65 mm opening)
BMW fan clutch wrench is used to remove and install the thermal-viscous fan on BMW and Fords (32 mm opening)
Universal fan belt adjustment wrench services Mercedes-Benz, Nissan Quest, and Mercury Villager radiator fans and pulley belts. It also can be used for loosening the A/C idler pulley tension lock nuts for A/C belt adjustment or replacement.

NUMBER EP-R515

Stack-On 15" Model R Low Profile Hip Roof Box

A compact, classic red steel gadget/tool box designed for household, project, or light professional use. It's often called a "gadget box" or "hip roof" style due to its low-profile, sloped lid design, which gives it a distinctive vintage look while keeping the overall height minimal for easy storage under benches, in vehicles, or on shelves.

Key Specifications

Dimensions: Approximately 15" wide × 6" deep × 3.5" high (exterior; internal usable space is slightly less due to the lid design).

Material: Rugged all-steel construction with welded end caps for durability.

Finish: Bold red baked epoxy coating that resists rust, solvents, and corrosion.

Features:Full-length staked piano hinge for smooth, strong lid operation.

Nickel-plated steel latch/draw bolt to secure heavier loads.

Steel handle for easy carrying.

Includes a lift-out plastic tray for organizing smaller tools or parts.

Weight: 5 lbs (empty; shipping weight approx 9 lbs, including packaging).

Made in the USA

This model is compact and ideal for storing essentials like screwdrivers, pliers, drill bits, small hardware, electrical testers, tape, or a basic socket set—perfect as a portable "go-to" box for quick jobs

NUMBER XZN8-MB

XZN Socket 8mm

Heavy Duty M8 XZN Tool for Toyota and Mercedes
12 Point tool (XZN) 8mm
Sturdy 1/2 inch Drive

This tool is 4 inches long.

Made from high-grade steel with a matte finish

for enhanced durability and corrosion resistance

Common Mercedes Applications:

CV axle / driveshaft bolts

Some suspension components

Engine covers or skid plates (on certain models)

Other drive train or under-body fasten

Specific Mercedes models using M8 XZN

Here are the most common Mercedes-Benz applications and models that use M8 XZN (8mm triple square) fasteners. These are frequently encountered during maintenance.

1. Rear Tailgate / Hatch Strut Mounting BoltsCommon on wagons and some hatchbacks:W123 series (e.g., 300D, 300TD wagons, 1977–1985)

Other older wagons like certain W124 or similar estates (varies by exact year/body style). The bolts holding the gas struts to the tailgate often require an 8mm XZN bit. Access is usually from inside after removing trim or speaker covers. Some versions may use a 10mm Allen instead, so double-check your manual for details.

2. Multi-Piece Wheel / Rim Bolts (Inner or Circumferential Bolts)R230 SL-Class (2002–2012), especially SL55 AMG, SL63 AMG, SL65 AMG

These are the smaller 8mm triple-square bolts that secure the two-piece or multi-piece alloy wheels together (not the main lug bolts, which are usually conical seat hex or Torx).

Very tight spaces and low torque (~12 ft-lbs); easy to strip if you use the wrong tool.

3. Engine and Accessory Bolts

Various V8 models (M112, M113, and some others) — accessory brackets, engine covers, or specific head/accessory bolts.

Older diesel engines in certain applications (some tool forums list M8 XZN for head and accessory work on select M102/M103/etc. families, though larger XZN sizes like M10 and M12 are more common for head bolts).

4. Drivetrain and Chassis Applications

Some CV axle / driveshaft flange bolts or related components on certain models (especially older or specific 4MATIC setups). Note: Many modern Mercedes CV joints use Torx (e.g., T55 or E Torx) or different XZN sizes (M10/M12 more common), so confirm the bolt head before assuming M8.

Suspension components, anti-roll bar links, or underbody/skid plate bolts on various models (less universal than on VW/Audi).

5. Other Uses

Brake caliper mounting or related hardware on select applications.

Universal joint or driveshaft mounting screws (M8 XZN x 48mm) on some older Mercedes and related platforms.

NUMBER MBW220

Mercedes AIR-MATIC Strut Tool
Special socket for the removal and installation of the top shock retaining nut.
The two protruding pins fit into slots cut in the retaining ring and allow hex key access through the center for release or adjustment of the shock.

W220 Mercedes “AIR-MATIC” Strut Tool Spanner socket (pin wrench) for top nut at suspension strut. Note: This tool is SMALLER than the smallest tool in the popular five piece set sold on this site and in other stores online.

The dimensions are as follows:

CENTER TO CENTER OF PINS 13.40mm.

OUTSIDE PINS 15.45mm.

INSIDE PINS 12.60mm.

NUMBER 44PCWD

4 pc Phillips Wood Handle Screwdriver

Set Made in the USA.

Beautifully made wooden handle screwdriver set.

Comes with Phillips #0, #1, #2 and #3 in a vinyl-plastic pouch.

Maine hardwood handles.

Materials: * Blades: High-carbon 8650 Chromium-Vanadium steel alloy with a black oxide finish to prevent rust.

Handles: Turned from Maine hardwood (typically Birch or Maple) with a square profile to prevent rolling and provide high torque.

Ferrules: Nickel-plated steel to reinforce the handle-to-blade connection.

NUMBER MK1703T2

Fan Clutch Holder Set for BMW (2pc)

For the purpose to remove water pump on models with temperature dependent viscosity drive fans.

32mm Open End Wrench and Fan Clutch Wrench for BMW

Fan Clutch Wrench removes lock nuts on the thermo-Viscous fans found on Ford, BMW many vehicles. Size : 32mm.

Made from tempered pressed steel.

Fan Clutch Holder allows the technician to hold the water pump pulley in place while loosening the radiator fan.

The Holder fits BMW engine models : M10,M20 ,M30,M40, M44,M50,M52,M52TU,M54,M56,M60, M70,M73, S14, S38, S50B30, S50B32, S54.

NUMBER CRA-Z-25G

Super Rare! Captain Cra-Z Soap!

Small Size (also called Crazy Soap or Captain Crazy Soap) is a heavy-duty, all-purpose bar soap

designed as a powerful hand cleaner for tough messes.

Removes grease, oil, tar, paint, ink, dirt, and more —

popular among mechanics, marine workers, gardeners, and anyone with messy jobs.

Users say it's better than products like Goop or Fast Orange, as it cleans deeply without drying out or irritating skin.

Key Features; Contains no pumice, abrasives, or petroleum solvents — it's non-toxic, biodegradable, skin-friendly, and has a pleasant scent.

Note: This is a small 25g bar, rectangular and compact, perfect for travel or samples

(similar to hotel soaps but much stronger for cleaning).

Approximate size is 2" x 1.5 x 1/2"

Cra-Z Soap is a beast for cleaning in a tiny package!

The BEST SOAP you will ever use in the garage or shop. Bar none.

BUY NOW

NUMBER VW20500

Fuel line disconnect Plier allow for faster removal and replacement of connections on fuel lines without damaging the connectors.

The handle of these pliers is ergonomically designed, providing an anti-slip and comfortable grip, saving time and effort.

The fuel pipe pliers are easy to operate. Use the pliers to pull the connector backward to easily connect or disconnect the fuel line or plug of the injector.

Size is approximately 8.86 x 3.98 inches

Mercedes M-Class (W163): Specifically for disconnecting the fuel lines at the fuel filter.

Mercedes Sprinter Vans: Often used for fuel line clips on various diesel and gas configurations.

This tool is the same as factory tool #163 589 00 37 00.

Pictures are for reference only.

NUMBER MK-WS55

Heavy Duty Work Shears

Designed to meet the demands of tough work environments. Perfect for cutting a variety of materials, these shears feature durable construction and are equipped with a convenient belt loop sheath for easy access and storage. Whether you’re working on a job site, in the workshop, or need reliable cutting tools for your toolbox, the WS55 Shears are built to last and get the job done. These shears provide precision cutting performance and are ideal for professionals who need a heavy-duty tool that won’t let them down.

Heavy-duty construction for durability

Ergonomically designed handles for comfort during extended use

Versatile cutting edge for various materials

Length: 9 inches

Blade Material: High-carbon steel

Heat-treated stainless steel blades

with nonslip serrations to keep material from slipping

Two component non-slip handles

NUMBER HAZET-LANYARD

Keychain/Strap

The HAZET key chain is not only practical, but also emphasizes your appreciation of Hazet quality tools. The 900mm long and 11mm wide strap is printed with HAZET logos on both sides and holds items securely in place thanks to a robust metal carabiner at the end of the strap.

For safety reasons, the plastic plug-in fastener has an additional safety catch that releases immediately if the strap gets caught. This prevents more serious injuries.

The HAZET key chain is the perfect little extra for HAZET fans all over the world.

Design: Both sides printed with four colors with HAZET logos
Size: L900 x W 11mm
With metal carabiner, plastic plug-in closure and additional safety lock

Promotional lanyard (Schlüsselband in German) in their signature turquoise blue color, featuring HAZET logos along the strap, a plastic breakaway safety clip, and a metal swivel lobster claw hook for attaching keys, badges, or IDs.

NUMBER 1810P

Universal Crankshaft Pulley Holder

Fan Clutch and Pulley Holding Tool used for holding pulleys, sprockets, and hubs in place while you loosen or tighten the center bolt. This tool is a lifesaver for timing belt jobs where you need to prevent the engine from rotating without damaging the delicate teeth of the pulley.

Applicable: BENZ S600 、M137、M112、M113、M271, M642 and a variety of vehicles.

Adjustable distance: P.C.D 30mm ~ 150 mm.

Overall Length: 405mm (approx. 16 inches), providing excellent leverage.

Maximum Spread: The adjustable jaws open up to 123mm.

Interchangeable Pins:

Four distinct pin types provided in pairs

Camshaft Pulleys: Holding the cam gear while torquing the bolt.

Crankshaft Pulleys: Specifically on overhead cam engines where the crank pulley lacks a hex head.

Fan Clutches: Holding the water pump pulley so you can spin off the fan clutch nut.

Variable Valve Timing (VVT) Hubs: Useful for holding the sprocket during phaser replacement.

Pro Tip: When using this on a camshaft, ensure the pins are fully seated in the pulley holes to avoid slipping, which could potentially chip the gear or cause the tool to kick back.

NUMBER NUMBER 3400XT50

Set with T50 Torx and Multi-Spline Socket

Set consisting of a long Torx T50 Torx tool and a 19mm Multi-spline short socket and

Some manuals describe this procedure as "mounting and dismounting" the alternator pulley or V-belt at the alternator/for Mercedes for removal and replacement of free-wheel drive pulleys on 1998 & up Benz, including 606 (210), 648 (211, 164), 642 (211, 164) Mercedes E300 1996 -1999.

The long tool is a Torx T50 and and is 3/8 drive and 4 inch overall length used to hold the alternator shaft when replacing the belts the area between the alternator and car body is very limited.

To use, simply place the Torx bit in the center hole of the Socket and then position both in the center of the alternator clutch.

fix the drill bit in place and rotate the spline nut to lock or unlock. This efficient operation ensures a secure and stable fit, making the tool highly effective for alternator maintenance. You will get both tools with this purchase.
